Epidemiological observations as of April 16, 2020
1. On April 6, 2020, the Institute for Health Metrics and Evaluation (IHME) of the University of Washington released its revised model which can be used to predict hospital bed use, need for intensive care beds, and ventilator use due to COVID-19. The basis for projections is a pre-publication paper by the IHME COVID-19 health service utilization forecasting team led by Christopher JL Murray. Dr. Murray is the Chair and Professor of Health Metrics Sciences andDirector of the Institute for Health Metrics and Evaluation (IHME) at the University of Washington. The IHME COVID-19 paper can be downloaded from https://doi.org/10.1101/2020.03.27.20043752 To access the IHME model on-line go to https://covid19.healthdata.org/projections
2. On April 10, 2020, the IHME model predicted: Florida peak resource use on April 26, 2020, at which time total of beds needed would be 6,431, beds available 20,184 (no bed shortage), ICU beds needed 1,241, ICU beds available 1,695 (0 predicted ICU bed shortage) and ventilators needed 1,041 (the IHME did not publish an estimate of available ventilators). On April 13, 2020, the IHME model predicted a significantly worse situation for Florida. The predicted peak disease activity has been moved to May 6, 2020. On that day the model predicts 128 deaths in Florida. The model previously predicted a total of 3,999 deaths in Florida by August 4, 2020. The revised model now predicts a total of 4,748 deaths by that date.
3. On April 16, 2020, JAMA published a “Viewpoint” article by Nicholas P. Jewell, Ph.D. et al of theDepartment of Medical Statistics, London School of Hygiene & Tropical Medicine. In a balanced article, Jewell et al cautioned against an uncritical use of models and recommended “… the public reporting of estimates from these models, in scientific journals and especially in the media, must be appropriately circumspect and include key caveats to avoid the misinterpretation that these forecasts represent scientific truth.” Jewell et al specifically noted, “Although the Institute ofHealth Metrics and Evaluation is continuously updating projections as more data become available and they adapt their methods, long-term mortality projections already have shown substantial volatility…” In my opinion, it is precisely because the IHME scientists continuously update their methodology that their model is useful. See http://www.healthdata.org/covid/updates for a discussion of the IHME updating strategy. Jewell et al also commented: “At a time when numbers of cases and deaths from COVID-19 continue to increase with alarming speed, accurate forecasts from mathematical models are increasingly important … Given the unpredictable behavior of severe acute respiratory syndrome coronavirus 2, it is best to acknowledge that short-term projections are the most that can be expected with reasonable accuracy.” As of last week, the IHME team at the University of Washington switched to a 3-day production schedule. Their last report was April 13 so an update is expected tomorrow.
4. At this point in the epidemic, in descending order of severity, as determined by the number of deaths/100,000 population, the 5 hardest-hit states are New York (12,192 deaths, 63/100,000), NewJersey (3,518 deaths, 40/100,000), Connecticut (971 deaths, 27/100,000), Louisiana (1,156deaths, 25/100,000), and Michigan (2,093 deaths, 21/100,000). Most other states, including the very large states of Texas (393 deaths, 1.4/100,000, and California (890 deaths, 2.3/100,000)have suffered significantly smaller losses of life per 100,000 population. Understandably, much of the media attention has been directed to the ongoing crisis in New York and New York City, but New York is not representative of the U.S. Florida is currently ranked #23 in the severity of the epidemic as the result of 668 deaths and a death rate of 3 per 100,000 population.
5. Compared to New York State, Florida has a larger population (22 million vs 19.5 million) but still has a much smaller number of confirmed cases at 23,340 vs 222,284 and a much smaller number of cases per 100,000 population at 106 vs 1,140. New York state currently has 10.8 times more confirmed cases per 100,000 population than Florida with no little in the ratio over the last 24 hours.
6. Compared to New York State, Florida currently has a much smaller number of deaths due to COVID-19 at 668 vs 12,192 and a much smaller number of deaths per 100,000 population at 3vs 63. New York State currently has 21 times more deaths per 100,000 population than does Florida. New York City reports a death rate of 102 per 100,000 NYC residents compared to the current death rate reported from Miami-Dade of 6.6 per 100,000 Miami-Dade residents. New York City currently has 15.5 times more deaths per 100,000 population than does Miami-Dade.
7. Epidemiological aspects of testing: there are 2 kinds of tests for the detection of infection with COVID-19. The first test that was available (and which is still in use) is a real-time polymerase chain reaction (RT-PCR) test. This test identifies a characteristic part of the RNA of the COVID-19 virus in a sample of the patient’s secretions from the back of the nose which must be collected by along (and uncomfortable) nasal swab. This test has been limited by long turn-around time. At the end of March, the FDA issued an emergency use authorization (EUA) for a new analyzer produced by Abbott Labs (ID NOW COVID-19). This device, which is about the size of a toaster, is expected to be used at the “point of care”, i.e. at the bedside inpatient care settings. The device will be able to detect specific nucleic acid from the RNA of the COVID-19 virus within about 5 minutes. It is expected that the Abbott machine will be rapidly deployed to hospitals. At first, the test will be used primarily to confirm the diagnosis of COVID-19 in hospital emergency rooms. An even more important use will be for the determination of the presence or absence of COVID-19 in the respiratory secretions of health care providers who are either quarantined because of a supposed contact or are recovering from the disease and need to get back to the front lines of hospitals, including ICUs.
A second kind of test that is soon going to be available is a blood test to detect COVID-19 specific antibodies. In response to a viral infection, the body produces at least 2 kinds of antibodies which are immune chemicals capable of attacking outside invaders. The first type of antibody produced by the body during the early phase of infection is an IgM and the second kind of antibody which is produced during recovery and which contributes to long-lasting immunity is an IgG. Tests already exist which can detect anti-COVID-19 IgM and IgG. When cleared for market, these tests will be valuable for at least 3 reasons: firstly, the determination of anti-COVID-19 IgG antibodies in the serum of health care workers who have recovered from COVID-19 infection will identify most (about 80%) of those workers as immune and able to treat COVID-19 patients with less risk, and possibly even without personal protective equipment (PPE); secondly, the identification of elevated levels of IgG in individuals who have recovered from COVID-19 identifies those people as potential blood donors. Anti-COVID-19antibodies from the blood of such donors can be used to treat other patients who have severe COVID-19 infection; thirdly, the determination of IgG antibodies in large sample populations will make it possible to calculate the overall prevalence of the disease in the population, despite the fact that many who have the disease are asymptomatic.
On April 15, 2020, Abbott announced the availability, starting on April 16, 2020, of its new IgG antibody test “which will initially be available on its ARCHITECT® i1000SR and i2000SR laboratory instruments. More than 2,000 of these instruments are in use in U.S.laboratories.” Abbott plans to ship 1 million test kits for the detection of IgG this week and 4 million by the end of April 2020. Abbott also announced that it is “ramping up to 20 million tests in the U.S. in June and beyond as it expands the tests to run on its new Alinity™ I system. Abbott also will be expanding its laboratory antibody testing to the detection of the antibody, IgM, in the near future.”
For the near future, I will continue to report the number of “test-confirmed” cases of COVID-19 as reported by the Florida Department of Health and by other States; however, this value is increasingly inaccurate and irrelevant as an ever-increasing proportion of the tests performed are conducted in laboratories which do not necessarily report their results to State health departments. The newly available Abbott molecular “ID NOW” rapid point of care analytical system for nasal swabs and the new Abbott IgG detection system will have multiple applications, including very importantly, improved safety for health care providers, but what effect the availability of such testing will have on the control of the current COVID-19 epidemic is yet to be seen.
Since the beginning of the epidemic in the United States, many have loudly proclaimed the importance of “testing” and the supposed terrible consequences of inadequate test availability. Despite the fervor of such declarations, most symptomatic and asymptomatic patients do not require a specific test for this disease. The current epidemic will most likely be contained by aggressive social distancing and, in some places like New York City where there was widespread infection, the development of herd immunity. The availability of new quick and accurate testing methods will be of benefit in the control of future disease “spikes” which can be anticipated to occur after social distancing is relaxed and until an effective vaccine will be available. Testing will be useful for the early detection of new disease activity, especially disease “hot spots” and for contact tracing, a traditional public health technique that involves the identification of all the contacts of an infected person and the quarantine of those contacts who are found to test positive.
Although the newly available RT-PCR and antibody tests have excellent sensitivity and specificity, there are inherent limitations to the use of test results for epidemiological evaluation. In contrast, sadly, reports of deaths are very accurate, although even some deaths are incorrectly attributed or not attributed to COVID-19. Using the reported COVID-19 death rates per 100,000 population it is possible, without any reference to testing results, to compare the terrible epidemic in NewYork with the more moderate epidemic in Florida. As indicated above, the COVID-19 death rate in New York is currently 21 times greater than the death rate in Florida. Eventually, when the epidemic is over and when it is possible to analyze the COVID-19 epidemic in New York vs Florida, multiple explanations will probably be uncovered to explain the differences, but I do not anticipate that testing or lack of testing will be one of the explanations.
8. Many factors will continue to affect who is tested using either the Abbott system or an antibody test. It is probable that in areas where COVID-19 infection is common, many tests are performed on very sick patients. In contrast, in regions where there is much less COVID-19 infection and death, such as South Florida, many of the tests are performed on people who really do not need to be tested because they have a high likelihood of not being infected. As a result, the proportion of COVID-19 tests that are positive reflects the local frequency and severity of the disease.

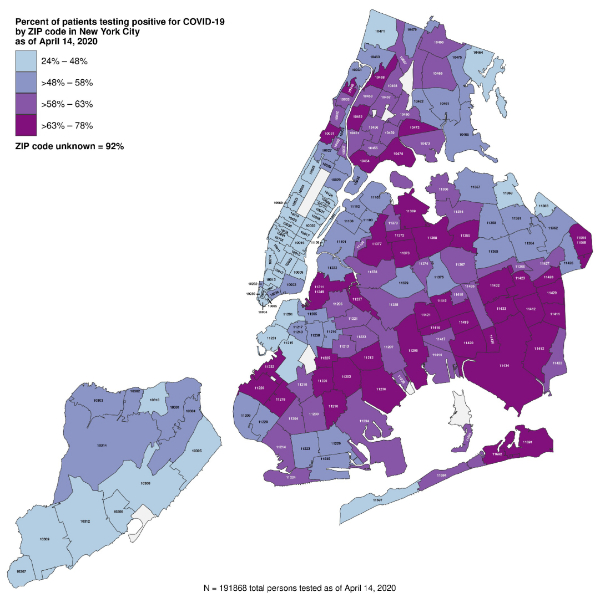

Florida, which overall has a moderate disease prevalence of 106 and a low death rate of 3 per 100,000 population, 225,736 tests for COVID-19 have been reported of which only 10.4% have proven positive. In contrast, the New York City Department of Health reported that as of April 14, 2020, of 191,868, tests performed, a very high percentage were positive. As shown on the graphic prepared by the NYC DOH, 62-79% of COVID-19 tests were positive when performed on residents who live in about half of New York City. So far 6,589 New Yorkers have died of COVID-19 and more will succumb before this terrible epidemic is over, but at the end of it all, many NewYork survivors will be immune.
9. Relative to the rest of the country, it is apparent from the data shown above that the COVID-19epidemic has been particularly severe in New York State and New York City. On April 13, 2020the Institute for Health Metrics and Evaluation (IHME) model indicated that the peak of the epidemic in New York State occurred on April 10, 2020 with 800 deaths. According to the model, the New York epidemic will resolve precipitously (probably because of herd immunity) and will be essentially over by May 9, 2020, i.e. the first day when 0 deaths are anticipated. In contrast, the epidemic has been less severe in Florida, that is, the “curve” of the epidemic has been and will be flattened as the result of a very different lifestyle (no subways) and effective “social distancing” but the duration of the epidemic will be longer, only peaking on May 6 with 128 deaths a day (the latter is a revision because the peak was previously anticipated to be from April 26 to April 28, 2020), and extending well into June.
On April 13, 2020, the IHME model predicted that by August 4, 2020, there will be a total of 14,542 deaths in the State of New York (75/100,000 or about 1.2times the present value – this value has been falling, it was 1.25 yesterday) and 4,748 deaths (revised from previous prediction of 3,999) in Florida (22/100,000 or 7.3 times the present value). For New York, the worst is almost over but for Florida, the epidemic will get worse before it gets better and Floridians, especially those older than 65 and those who have significant chronic disease, can anticipate a long siege.
10. Additional evidence that age is a major risk factor for severity of COVID-19 illness: early in the evolution of knowledge about COVID-19 a distinct increase in risk experienced by older patients was identified in reports published by Chinese scientists. Evidence of susceptibility by age identified by the Chinese CDC and subsequently by the New York City Department of Health is shown below.

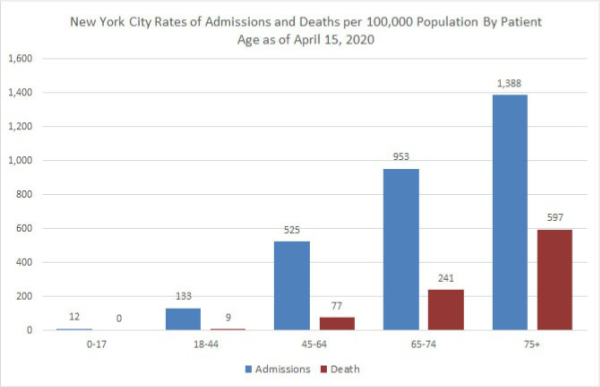

New York City residents 18-44 years old have a small but significant risk of hospital admission for COVID-19 (133/100,000) but residents 65-74 years of age have more than 7 times greater risk of hospitalization. Young New Yorkers <45 years old have a small risk of death from COVID-19(9/100,000) but older New Yorkers 65-74 have a much greater risk at 241/100,000 and residents of New York 75 and older have a risk of dying of COVID-19 approximately 66 times greater(597/9) than the risk experienced by people 18-44.
11. Underlying serious health conditions increase the risk of a severe outcome in COVID-19: The explanation for the markedly increased susceptibility of older people to this virus is still not available. One explanation that has been proposed is that with increasing age many people accumulate chronic illnesses such as obesity, hypertension, and type II diabetes which are normally manageable and not immediately threatening but which may decrease the potency of a person’s natural defenses. The Chicago Department of Health reports that as of April 10, 2020 it had identified 7,278 cases of COVID-19 and 212 deaths. Of 199 patients who died and whose medical history was available, 189 or 95% had at least one known chronic medical condition, most commonly diabetes, hypertension, and lung disease. See https://www.chicago.gov/city/en/sites/covid-19/home/latest-data.html
The Department of Health of Louisiana (http://ldh.la.gov/Coronavirus/) reports the following prevalence of disease in the patients who died of COVID-19
Kidney disease: 25.10%
Heart disease: 22.67%
Asthma, which is a common chronic disease, was identified in only 4.66% of the Louisiana patients who died.
On April 3, 2020 the Morbidity and Mortality Weekly Report (MMWR) of the CDC released a special report titled “Preliminary Estimates of the Prevalence of Selected Underlying health conditions Among Patients with Coronavirus Disease 2019 — United States, February 12 – March 28, 2020.” This report is available on-line at http://dx.doi.org/10.15585/mmwr.mm6913e2
The MMWR evaluated data on 7,162 patients and reported: “Approximately one-third of these patients (2,692, 37.6%), had at least one underlying condition or risk factor. Diabetes mellitus(784, 10.9%), chronic lung disease (656, 9.2%), and cardiovascular disease (647, 9.0%) were the most frequently reported conditions among all cases. Among 457 ICU admissions and 1,037 non-ICU hospitalizations, 358 (78%) and 732 (71%), respectively occurred among persons with one or more reported underlying health condition … the percentage of cases that resulted in an ICU admission was also higher for those with underlying health conditions (13.3%–14.5%) than those without these conditions (2.2%–2.4%).” Of 457 patients admitted to an ICU whose prior medical history was known, the prevalence of specific diseases was:
Chronic lung: 21%
Heart disease: 29%
Chronic renal: 9%
Of the 457 patients who required ICU admission only 4 (1%) were pregnant.
12. Pediatric cases are uncommon, often (68%) asymptomatic and a large proportion were detected in New York: On April 6, 2020, the Morbidity and Mortality Weekly Report (MMWR) of the CDC released a special report titled “Coronavirus Disease 2019 in Children — United States, February 12 – April 2, 2020. MMWR Morb Mortal Wkly Rep 2020;69:422–426.” This report is available online at http://dx.doi.org/10.15585/mmwr.mm6914e4 and its main points were summarized on April 8, 2020, by Dr. Deborah Lehman of the NEJM: “Researchers examined almost 150,000 laboratory-confirmed cases of COVID-19 between February 12 and April 2. Of these, 2572 (1.7%) were <18 years old, and 33% of pediatric cases were from New York City. For cases with available information, findings include:
a. Median age was 11 years (range, >1 to 17 years).
b. 73% of children had the classic COVID-19 symptoms (fever [56%], cough [54%],shortness of breath [13%]) versus 93% of adults.
c. Other symptoms noted in children included sore throat (24%), headache (28%), and myalgias (23%), all at lower frequencies than reported in adults.
d. Hospitalizations were lower for children (5.7%) than for adults aged 18 to 64 years (10%), including fewer intensive care unit admissions.
e. 68% of children had no symptoms (there was incomplete symptom reporting).
f. 23% of children had an underlying condition, including asthma, immunosuppression, and cardiovascular disease.”
13. Emerging evidence of increased risk for African-Americans: On April 7, 2020 media reports appeared which warned of an increased COVID-19 mortality risk experienced by African-Americans. In an article titled “The coronavirus is infecting and killing black Americans at an alarmingly high rate” the Washington Post reported:
In Milwaukee County, home to Wisconsin’s largest city, African Americans account for about 70 percent of the dead but just 26 percent of the population. The disparity is similar in Louisiana, where 70 percent of the people who have died were black, although African Americans make up just 32 percent of the state’s population.
In Michigan, where the state’s 845 reported deaths outrank all but NewYork’s and New Jersey’s, African Americans account for 33 percent of cases and roughly 40 percent of deaths, despite comprising only 14percent of the population. The state does not offer a breakdown of race by county or city, but more than a quarter of deaths occurred in Detroit, where African Americans make up 79 percent of the population.
And in Illinois, a disparity nearly identical to Michigan’s exists at the state level, but the picture becomes far starker when looking at data just from Chicago, where black residents have died at a rate six times that of white residents. Of the city’s 118 reported deaths, nearly 70 percent were black— a share 40 points greater than the percentage of African Americans living in Chicago.

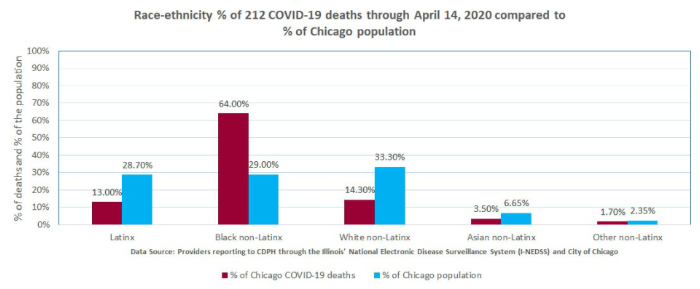

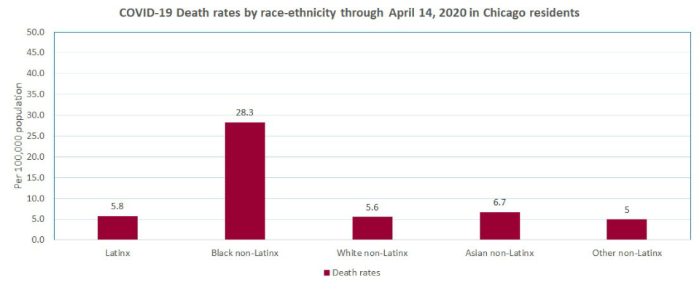

The Chicago Department of Health at https://www.chicago.gov/city/en/sites/covid-19/home/latest-data.html and the City of Chicago at https://datausa.io/profile/geo/chicago-il#demographics provide the information that I used to prepare the following charts:
The explanation for the reported increased susceptibility of African Americans to this virus is still not available but it has been suggested that it is due to the higher prevalence of certain chronic diseases such as hypertension and diabetes in the African American population. As noted above, the ChicagoDepartment of Health reported that 94.5% of patients who died of COVID-19 had at least one known chronic medical condition, most commonly diabetes, hypertension, and lung disease.
1. Values in columns above which show the theoretical number of cases, prevalence, and mortality at “x10” estimate that the real number of cases is 10x greater than the reported number of test-proven cases. The actual number of cases is probably between 10 and 100 times greater than the number of test-proven cases. Mortality rates are calculated by dividing the number of deaths by the number of confirmed (tested) cases which are mostly severe or moderately severe cases. It is too early to estimate the mortality of hospitalized patients. Verity et al reported in LancetInfect Dis (https://doi.org/10.1016/S1473-3099(20)30243-7): mean duration from onset of symptoms to death 17.8 days; also “In all laboratory-confirmed and clinically diagnosed cases from mainland China (n=70,117)… we obtained a best estimate of the case fatality ratio in China of 1.38% (1.23-1.53), with substantially higher ratios in older age groups…”
2. For context: CDC reports that in 2017 total of U.S. deaths from all causes was 2,813,503.
3. Compare to influenza. United States CDC reports:2018-2019 influenza: 35,520,883 cases, 490,561 hospitalizations and 34,157 deaths.Overall mortality of 34,157/35,520,883 = .1% and hospital mortality 34,157/490,561 = 7%
2017-2018 influenza: 45,000,000 cases,810,000 hospitalizations and 61,000 deaths.Overall mortality of 61,000/45,000,000 = .14% and hospital mortality 61,000/810,000 = 7.5%
